平方根共分散フィルタを用いた : 時不変カルマンフィルタの観測更新と時間更新

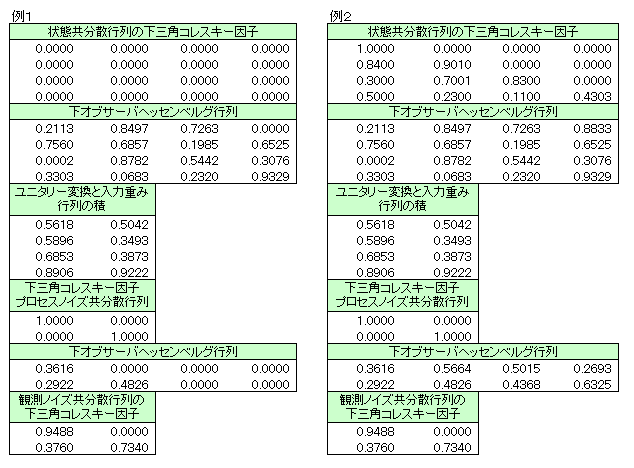

nag_kalman_sqrt_filt_cov_invar (g13ebc) Example Program Data
Example 1
   4     2     2   0.0
   0.0000  0.0000  0.0000  0.0000
   0.0000  0.0000  0.0000  0.0000
   0.0000  0.0000  0.0000  0.0000
   0.0000  0.0000  0.0000  0.0000
   0.2113  0.8497  0.7263  0.0000
   0.7560  0.6857  0.1985  0.6525
   0.0002  0.8782  0.5442  0.3076
   0.3303  0.0683  0.2320  0.9329
   0.5618  0.5042
   0.5896  0.3493
   0.6853  0.3873
   0.8906  0.9222
   1.0000  0.0000
   0.0000  1.0000
   0.3616  0.0000  0.0000  0.0000
   0.2922  0.4826  0.0000  0.0000
   0.9488  0.0000
   0.3760  0.7340
Example 2
   4     2     2     0.0
   1.0000  0.0000  0.0000  0.0000
   0.8400  0.9010  0.0000  0.0000
   0.3000  0.7001  0.8300  0.0000
   0.5000  0.2300  0.1100  0.4303
   0.2113  0.8497  0.7263  0.8833
   0.7560  0.6857  0.1985  0.6525
   0.0002  0.8782  0.5442  0.3076
   0.3303  0.0683  0.2320  0.9329
   0.5618  0.5042
   0.5896  0.3493
   0.6853  0.3873
   0.8906  0.9222
   1.0000  0.0000
   0.0000  1.0000
   0.3616  0.5664  0.5015  0.2693
   0.2922  0.4826  0.4368  0.6325
   0.9488  0.0000
   0.3760  0.7340

nag_kalman_sqrt_filt_cov_invar (g13ebc) Example Program Results

Example 1

The square root of the state covariance matrix is

 -1.7223   0.0000   0.0000   0.0000
 -2.1073   0.5467   0.0000   0.0000
 -1.7649   0.1412  -0.1710   0.0000
 -1.8291   0.2058  -0.1497   0.7760

The matrix AK (the product of the Kalman gain
matrix with the state transition matrix) is

 -0.2135   1.6649
 -0.2345   2.1442
 -0.2147   1.7069
 -0.1345   1.4777

Example 2

Covariance matrix PE from nag_kalman_sqrt_filt_cov_var (g13eac) is

  1.6761   1.4744   1.2519   1.6852
  1.4744   1.3646   1.1367   1.4651
  1.2519   1.1367   1.0668   1.3445
  1.6852   1.4651   1.3445   2.2045

Covariance matrix PF from nag_kalman_sqrt_filt_cov_invar (g13ebc) is

  5.0635  -1.5512   0.0231   1.1756
 -1.5512   0.8503  -0.0492  -0.3631
  0.0231  -0.0492   0.0648  -0.0217
  1.1756  -0.3631  -0.0217   0.3336

Matrix U' * PF * U is

  1.6761   1.4744   1.2519   1.6852
  1.4744   1.3646   1.1367   1.4651
  1.2519   1.1367   1.0668   1.3445
  1.6852   1.4651   1.3445   2.2045

The matrix KE from nag_kalman_sqrt_filt_cov_var (g13eac) is

  0.3699   0.9447
  0.3526   0.8199
  0.2783   0.5375
  0.1588   0.6704

The matrix KF from nag_kalman_sqrt_filt_cov_invar (g13ebc) is

 -0.5857  -1.4263
 -0.0280   0.2239
  0.0170   0.1200
 -0.1405  -0.4519

U' * KF is

  0.3699   0.9447
  0.3526   0.8199
  0.2783   0.5375
  0.1588   0.6704

/* nag_kalman_sqrt_filt_cov_invar (g13ebc) Example Program.
 *
 * CLL6I261D/CLL6I261DL Version.
 *
 * Copyright 2017 Numerical Algorithms Group.
 *
 * Mark 26.1, 2017.
 */

#include <nag.h>
#include <stdio.h>
#include <nag_stdlib.h>
#include <nagf07.h>
#include <nagf16.h>
#include <nagg13.h>

typedef enum
{ read, print } ioflag;

static int ex1(void);
static int ex2(void);

int main(void)
{
  Integer exit_status_ex1 = 0;
  Integer exit_status_ex2 = 0;

  printf("nag_kalman_sqrt_filt_cov_invar (g13ebc) Example Program "
         "Results\n\n");

  /* Skip the heading in the data file  */
  scanf(" %*[^\n] ");

  exit_status_ex1 = ex1();
  exit_status_ex2 = ex2();

  return (exit_status_ex1 == 0 && exit_status_ex2 == 0) ? 0 : 1;
}

#define A(I, J) a[(I) *tda + J]
#define B(I, J) b[(I) *tdb + J]
#define C(I, J) c[(I) *tdc + J]
#define K(I, J) k[(I) *tdk + J]
#define Q(I, J) q[(I) *tdq + J]
#define R(I, J) r[(I) *tdr + J]
#define S(I, J) s[(I) *tds + J]

static int ex1()
{ /* simple example (matrices A and C are supplied in lower observer
     Hessenberg form) */
  Integer exit_status = 0, i, istep, j, m, n, p, tda, tdb, tdc, tdh, tdk, tdq;
  Integer tdr, tds;
  NagError fail;
  double *a = 0, *b = 0, *c = 0, *h = 0, *k = 0, *q = 0, *r = 0, *s = 0, tol;

  INIT_FAIL(fail);

  /* Skip the heading in the data file  */
  scanf(" %*[^\n]");

  printf("Example 1\n");

  scanf("%ld%ld%ld%lf", &n, &m, &p, &tol);
  if (n >= 1 && m >= 1 && p >= 1) {
    if (!(a = nAG_ALLOC(n * n, double)) ||
        !(b = nAG_ALLOC(n * m, double)) ||
        !(c = nAG_ALLOC(p * n, double)) ||
        !(k = nAG_ALLOC(n * p, double)) ||
        !(q = nAG_ALLOC(m * m, double)) ||
        !(r = nAG_ALLOC(p * p, double)) ||
        !(s = nAG_ALLOC(n * n, double)) || !(h = nAG_ALLOC(n * p, double)))
    {
      printf("Allocation failure\n");
      exit_status = -1;
      goto END;
    }
    tda = n;
    tdb = m;
    tdc = n;
    tdk = p;
    tdq = m;
    tdr = p;
    tds = n;
    tdh = p;
  }
  else {
    printf("Invalid n or m or p.\n");
    exit_status = 1;
    return exit_status;
  }

  /* Read data */
  for (i = 0; i < n; ++i)
    for (j = 0; j < n; ++j)
      scanf("%lf", &S(i, j));
  for (i = 0; i < n; ++i)
    for (j = 0; j < n; ++j)
      scanf("%lf", &A(i, j));
  for (i = 0; i < n; ++i)
    for (j = 0; j < m; ++j)
      scanf("%lf", &B(i, j));

  if (q) {
    for (i = 0; i < m; ++i)
      for (j = 0; j < m; ++j)
        scanf("%lf", &Q(i, j));
  }
  for (i = 0; i < p; ++i)
    for (j = 0; j < n; ++j)
      scanf("%lf", &C(i, j));
  for (i = 0; i < p; ++i)
    for (j = 0; j < p; ++j)
      scanf("%lf", &R(i, j));

  /* Perform three iterations of the Kalman filter recursion  */
  for (istep = 1; istep <= 3; ++istep)
    /* nag_kalman_sqrt_filt_cov_invar (g13ebc).
     * One iteration step of the time-invariant Kalman filter
     * recursion using the square root covariance implementation
     * with (AC) in lower observer Hessenberg form
     */
    nag_kalman_sqrt_filt_cov_invar(n, m, p, s, tds, a, tda, b, tdb, q, tdq,
                                   c, tdc, r, tdr, k, tdk, h, tdh, tol,
                                   &fail);
  if (fail.code != NE_NOERROR) {
    printf("Error from nag_kalman_sqrt_filt_cov_invar (g13ebc).\n%s\n",
           fail.message);
    exit_status = 1;
    goto END;
  }

  printf("\nThe square root of the state covariance matrix is\n\n");
  for (i = 0; i < n; ++i) {
    for (j = 0; j < n; ++j)
      printf("%8.4f ", S(i, j));
    printf("\n");
  }
  if (k) {
    printf("\nThe matrix AK (the product of the Kalman gain\n");
    printf("matrix with the state transition matrix) is\n\n");
    for (i = 0; i < n; ++i) {
      for (j = 0; j < p; ++j)
        printf("%8.4f ", K(i, j));
      printf("\n");
    }
  }
END:
  nAG_FREE(a);
  nAG_FREE(b);
  nAG_FREE(c);
  nAG_FREE(k);
  nAG_FREE(q);
  nAG_FREE(r);
  nAG_FREE(s);
  nAG_FREE(h);

  return exit_status;
}

static void mat_io(Integer n, Integer m, double mat[], Integer tdmat,
                   ioflag flag, const char *message);

#define UB(I, J)    ub[(I) *tdub + J]
#define SF(I, J)    sf[(I) *tdsf + J]
#define SE(I, J)    se[(I) *tdse + J]
#define PF(I, J)    pf[(I) *tdpf + J]
#define UAUT(I, J)  uaut[(I) *tduaut + J]
#define CUT(I, J)   cut[(I) *tdcut + J]
#define U(I, J)     u[(I) *tdu + J]

static int ex2()
{ /* more general example which requires the data to be transformed. The
     results produced by nag_kalman_sqrt_filt_cov_var (g13eac) and
     nag_kalman_sqrt_filt_cov_invar (g13ebc) are compared */
  Integer exit_status = 0, i, istep, j, m, n, p, tda, tdb;
  Integer tdc, tdcut, tdh, tdke, tdkf, tdpe, tdpf, tdq, tdr, tdrwork, tdse;
  Integer tdsf, tdu, tduaut, tdub;
  NagError fail;
  Nag_ObserverForm reduceto = Nag_LH_Observer;
  double *a = 0, *b = 0, *c = 0, *cut = 0, *h = 0;
  double *ke = 0, *kf = 0, one = 1.0, *pe = 0, *pf = 0, *q = 0;
  double *r = 0, *rwork = 0, *se = 0, *sf = 0, tol, *u = 0;
  double *uaut = 0, *ub = 0, zero = 0.0;

  INIT_FAIL(fail);

  printf("\nExample 2\n\n");

  /* skip the heading in the data file */
  scanf(" %*[^\n]");

  scanf("%ld%ld%ld%lf", &n, &m, &p, &tol);
  if (n >= 1 && m >= 1 && p >= 1) {
    if (!(a = nAG_ALLOC(n * n, double)) ||
        !(b = nAG_ALLOC(n * m, double)) ||
        !(c = nAG_ALLOC(p * n, double)) ||
        !(ke = nAG_ALLOC(n * p, double)) ||
        !(kf = nAG_ALLOC(n * p, double)) ||
        !(ub = nAG_ALLOC(n * m, double)) ||
        !(q = nAG_ALLOC(m * m, double)) ||
        !(r = nAG_ALLOC(p * p, double)) ||
        !(rwork = nAG_ALLOC(n * n, double)) ||
        !(sf = nAG_ALLOC(n * n, double)) ||
        !(se = nAG_ALLOC(n * n, double)) ||
        !(h = nAG_ALLOC(n * p, double)) ||
        !(pf = nAG_ALLOC(n * n, double)) ||
        !(pe = nAG_ALLOC(n * n, double)) ||
        !(uaut = nAG_ALLOC(n * n, double)) ||
        !(cut = nAG_ALLOC(p * n, double)) || !(u = nAG_ALLOC(n * n, double)))
    {
      printf("Allocation failure\n");
      exit_status = -1;
      goto END;
    }
    tda = n;
    tdb = m;
    tdc = n;
    tdke = p;
    tdkf = p;
    tdub = m;
    tdq = m;
    tdr = p;
    tdrwork = n;
    tdsf = n;
    tdse = n;
    tdh = p;
    tdpf = n;
    tdpe = n;
    tduaut = n;
    tdcut = n;
    tdu = n;
  }
  else {
    printf("Invalid n or m or p.\n");
    exit_status = 1;
    return exit_status;
  }
  mat_io(n, n, se, tdse, read, "");
  mat_io(n, n, a, tda, read, "");
  mat_io(n, m, b, tdb, read, "");
  if (q)
    mat_io(m, m, q, tdq, read, "");
  mat_io(p, n, c, tdc, read, "");
  mat_io(p, p, r, tdr, read, "");
  for (i = 0; i < n; ++i) {
    for (j = 0; j < n; ++j) {
      if (i < p)
        CUT(i, j) = C(i, j);
      SF(i, j) = SE(i, j);
      UAUT(i, j) = A(i, j);
      U(i, j) = zero;
    }
    U(i, i) = one;
  }
  /* Set up the matrix pair (A,C) in the lower observer hessenberg form */
  /* nag_trans_hessenberg_observer (g13ewc).
   * Unitary state-space transformation to reduce (AC) to
   * lower or upper observer Hessenberg form
   */
  nag_trans_hessenberg_observer(n, p, reduceto, uaut, tduaut, cut, tdcut,
                                u, tdu, &fail);
  if (fail.code != NE_NOERROR) {
    printf("Error from nag_trans_hessenberg_observer (g13ewc).\n%s\n",
           fail.message);
    exit_status = 1;
    goto END;
  }
  for (j = 0; j < m; ++j)
    for (i = 0; i < n; ++i)
      nag_ddot(Nag_NoConj, n, 1.0, &U(i, 0), 1, 0.0, &B(0, j), tdb, &UB(i,j),
               &fail);

  /* Generate noise covariance matrices PE and PF = U * PE * U' */
  nag_dgemm(Nag_RowMajor, Nag_NoTrans, Nag_Trans, n, n, n, one, se, tdse,
            se, tdse, zero, pe, tdpe, &fail);
  nag_dgemm(Nag_RowMajor, Nag_NoTrans, Nag_Trans, n, n, n, one, pe, tdpe,
            u, tdu, zero, rwork, tdrwork, &fail);
  nag_dgemm(Nag_RowMajor, Nag_NoTrans, Nag_NoTrans, n, n, n, one, u, tdu,
            rwork, tdrwork, zero, pf, tdpf, &fail);

  /* Now find the lower triangular (left) Cholesky factor of PF. */
  /* nag_dpotrf (f07fdc).
   * Cholesky factorization of real symmetric positive definite matrix.
   */
  nag_dpotrf(Nag_RowMajor, Nag_Lower, n, pf, tdpf, &fail);
  if (fail.code != NE_NOERROR) {
    printf("Error from nag_dpotrf (f07fdc).\n%s\n", fail.message);
    exit_status = 1;
    goto END;
  }
  for (i = 0; i < n; ++i)
    for (j = 0; j <= i; ++j)
      SF(i, j) = PF(i, j);
  /* Perform three steps of the Kalman filter recursion */
  for (istep = 1; istep <= 3; ++istep) {
    /* nag_kalman_sqrt_filt_cov_var (g13eac).
     * One iteration step of the time-varying Kalman filter
     * recursion using the square root covariance implementation
     */
    nag_kalman_sqrt_filt_cov_var(n, m, p, se, tdse, a, tda, b, tdb, q,
                                 tdq, c, tdc, r, tdr, ke, tdke, h, tdh, tol,
                                 &fail);
    if (fail.code != NE_NOERROR) {
      printf("Error from nag_kalman_sqrt_filt_cov_var (g13eac).\n%s\n",
             fail.message);
      exit_status = 1;
      goto END;
    }
    /* nag_kalman_sqrt_filt_cov_invar (g13ebc), see above. */
    nag_kalman_sqrt_filt_cov_invar(n, m, p, sf, tdsf, uaut, tduaut, ub, tdub,
                                   q, tdq, cut, tdcut, r, tdr, kf, tdkf, h,
                                   tdh, tol, &fail);
    if (fail.code != NE_NOERROR) {
      printf("Error from nag_kalman_sqrt_filt_cov_invar (g13ebc).\n%s\n",
             fail.message);
      exit_status = 1;
      goto END;
    }
  }
  nag_dgemm(Nag_RowMajor, Nag_NoTrans, Nag_Trans, n, n, n, one, se, tdse,
            se, tdse, zero, pe, tdpe, &fail);
  nag_dgemm(Nag_RowMajor, Nag_NoTrans, Nag_Trans, n, n, n, one, sf, tdsf,
            sf, tdsf, zero, pf, tdpf, &fail);
  mat_io(n, n, pe, tdpe, print, "Covariance matrix PE from "
         "nag_kalman_sqrt_filt_cov_var (g13eac) is\n");
  mat_io(n, n, pf, tdpf, print, "Covariance matrix PF from "
         "nag_kalman_sqrt_filt_cov_invar (g13ebc) is\n");

  /* Calculate PF = U' * PF * U */
  nag_dgemm(Nag_RowMajor, Nag_NoTrans, Nag_NoTrans, n, n, n, one, pf, tdpf,
            u, tdu, zero, rwork, tdrwork, &fail);
  nag_dgemm(Nag_RowMajor, Nag_Trans, Nag_NoTrans, n, n, n, one, u, tdu,
            rwork, tdrwork, zero, pf, tdpf, &fail);
  mat_io(n, n, pf, tdpf, print, "Matrix U' * PF * U is \n");
  mat_io(n, p, ke, tdke, print,
         "The matrix KE from nag_kalman_sqrt_filt_cov_var (g13eac) is\n");
  mat_io(n, p, kf, tdkf, print,
         "The matrix KF from nag_kalman_sqrt_filt_cov_invar (g13ebc) is\n");

  /* calculate U' * K */
  nag_dgemm(Nag_RowMajor, Nag_Trans, Nag_NoTrans, n, p, n, one, u, tdu,
            kf, tdkf, zero, rwork, tdrwork, &fail);
  mat_io(n, p, rwork, tdrwork, print, "U' * KF is\n");

END:
  nAG_FREE(a);
  nAG_FREE(b);
  nAG_FREE(c);
  nAG_FREE(ke);
  nAG_FREE(kf);
  nAG_FREE(ub);
  nAG_FREE(q);
  nAG_FREE(r);
  nAG_FREE(rwork);
  nAG_FREE(sf);
  nAG_FREE(se);
  nAG_FREE(h);
  nAG_FREE(pf);
  nAG_FREE(pe);
  nAG_FREE(uaut);
  nAG_FREE(cut);
  nAG_FREE(u);

  return exit_status;
}

static void mat_io(Integer n, Integer m, double mat[], Integer tdmat,
                   ioflag flag, const char *message)
{
  Integer i, j;
#define MAT(I, J) mat[((I) -1)*tdmat + (J) -1]
  if (flag == print)
    printf("%s \n", message);
  for (i = 1; i <= n; ++i) {
    for (j = 1; j <= m; ++j) {
      if (flag == read)
        scanf("%lf", &MAT(i, j));
      if (flag == print)
        printf("%8.4f ", MAT(i, j));
    }
    if (flag == print)
      printf("\n");
  }
  if (flag == print)
    printf("\n");
} /* mat_io */
